Roof Fan, Fan, Ventilator, Ventilation, Ventilating Fan, Ventilation, Ventilator Fan, Ventilation, Ventilator Fan, Air Mover
DWT are widely used for ventilation and air-supply in power plant, rubber plant, motor and motorcycle plant, chemicals plant, food and beverage factory, light industry and civil buildings and enjoy high prestige among the users. Their impeller, casing and blast cap maybe made of FRP, aluminum alloy or barbon steel as per clients' requirements.
Axial-flow roof ventilator(DWT-I):It is suitable for middle or low pressure and large flow rate and maybe designed to reversible dual rotation type to suit for two different working conditions(forwards and backwards rotation)

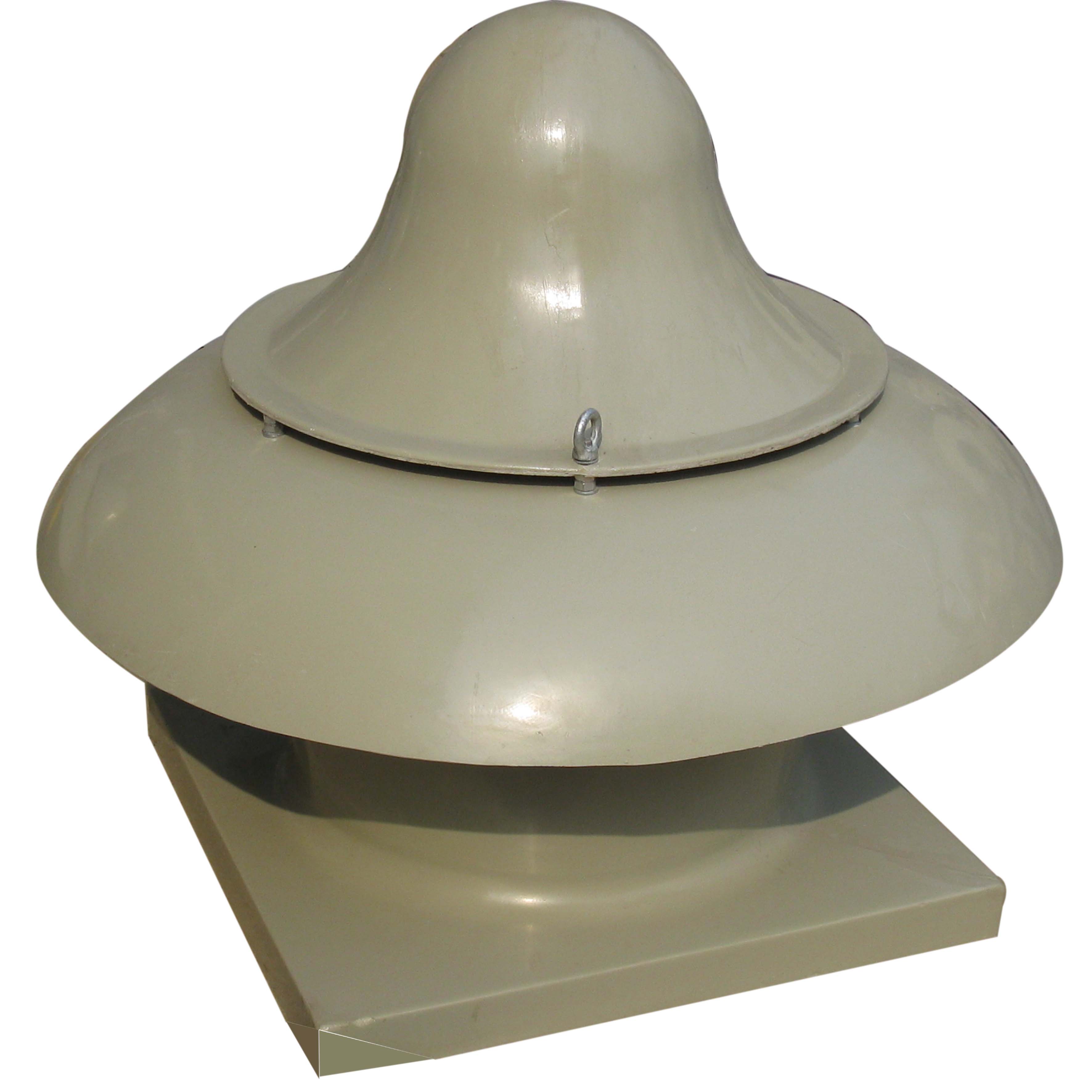

Centrifugal roof ventilator( DWT-II & DWTIII): It is suitale for high pressure and low flowrate.
High efficiency and low noise: The ventilators are developed with advanced CAD software throught optimization design, In the series1200#,1400#, 1500#j 1600#, 1800#, 2000#, 2200#, 2400# ventilators adopt same diameter but different speeds, angles, and vane types to meet requirements on different working conditions, adapt the system, and reduce energy consumption and noise.
Features: light weight, low noise, large air flow and reliable operation.Application: To blow and exhaust air for the roof of large factory buildings such as power plants, rubber factories, auto and motorcycle factories and high civil buildings.
Specification:
1)Fan diameter:300mm - 2,400mm
2)Air volume: 3,000m³/h - 140,000 m³/h
3)Air pressure:150Pa - 600Pa.
